Thermoplastic Material Hot Press

Basic Info

Model No.: XLB

Brand: QuanJinHe

Place Of Origin: China

Status: New

Warranty Period: 1 Year

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump

Core Selling Point: Easy To Operate, Famous Brand Plc, Remote Control, Accurate Temperature Control, Competitive Price, Long Service Life, Remote Monitoring, High Productivity, Low Noise Level, Patented Product, Multilayer, Flexible Manufacturing, Famous Brand Motor, Sustainable, Multifunctional, Bi-Color, High Safety Level, Low Maintenance Cost, High-Accuracy, High Rigidity, Automatic, Multi Color, Energy Saving

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Applicable Industry: Building Material Shops, Manufacturing Plant, Retail, Construction Works

Application: Rubber, Plastic, High Polymer Material, Fiber, Cardboard

Control: PLC+GOT

Molding Force: Depend on the product

Plate Size: Customized

Layers: Customized

Power: Customized

Color: Customized

Voltage: Customized

Frequency: Customized

Product Name: Thermoplastic Material Hot Press

Additional Info

Packaging: Packing frame and plastic film, then load into containers

Productivity: 200 sets per year

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 200 sets per year

Certificate: ISO 9001; ISO 14001

HS Code: 84778000

Port: Shanghai

Product Description

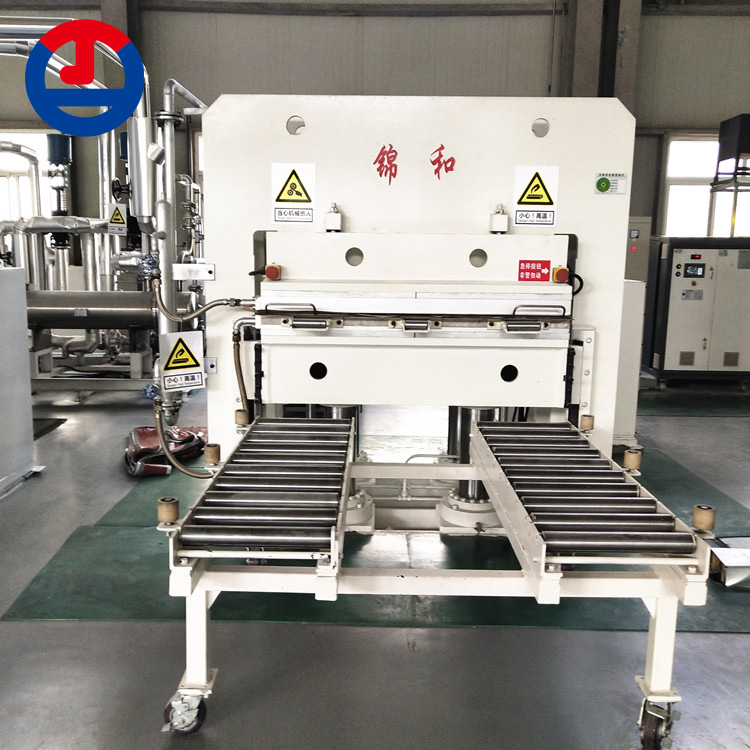

Thermoplastic Material Hot Press

Suitable for rubber, rubber products, plastic, high polymer material, fiber, cardboard and etc.

Process different materials by assembling different components, plates, pressures, and temperatures.

1. Overview of Working Principle

When the composite material Hot Pressing Machine is in operation, the pre cut fiber material is first laid on the mold, and then resin material (or other adhesive) is added. Next, place the mold into the hot press molding machine, and the heating system begins to heat the composite material inside the mold, causing the resin material to flow and impregnate the fiber material. At the same time, the pressure system applies pressure, allowing the composite material to solidify and form under high temperature and pressure. Finally, after cooling, the formed composite material product can be removed.

2. Heating system

The heating system is one of the key components of the composite material hot pressing machine, responsible for providing the required temperature conditions to allow the resin material to flow and infiltrate the fiber material. The heating system usually uses thermal oil heating or mold temperature machine heating, and the temperature can reach 200 degrees or even higher, with an error within a few degrees. Equipped with PID intelligent adjustment function to ensure that the composite material can reach the predetermined temperature conditions during the hot pressing process.

3. Pressure system

The pressure system is also an important component of the composite material hot pressing machine, which is responsible for applying the required pressure to enable the composite material to solidify and form under high temperature and pressure. Pressure systems typically apply and regulate pressure through devices such as hydraulic or pneumatic cylinders. During the hot pressing process, the pressure system needs to maintain a stable pressure output to ensure uniform curing of the composite material.

Technical Data
