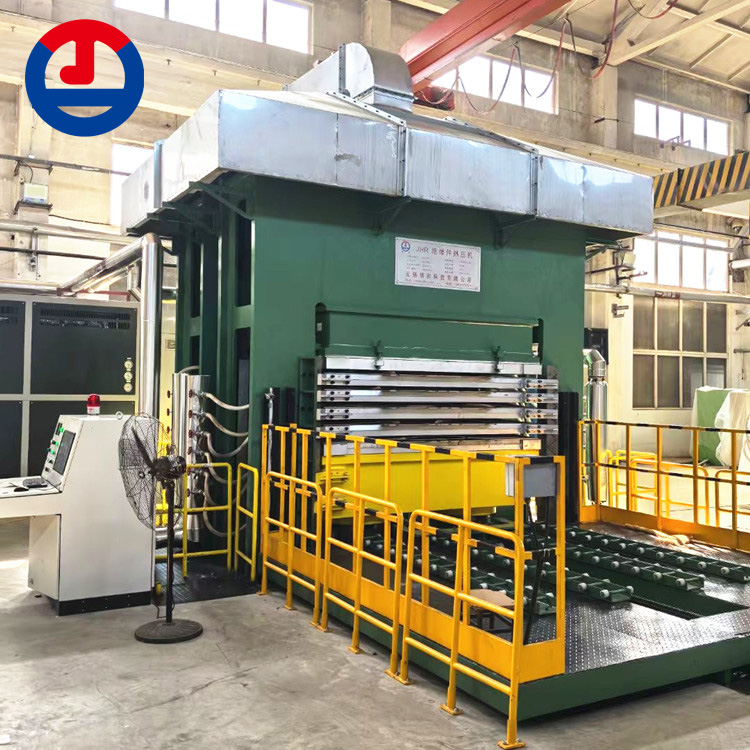

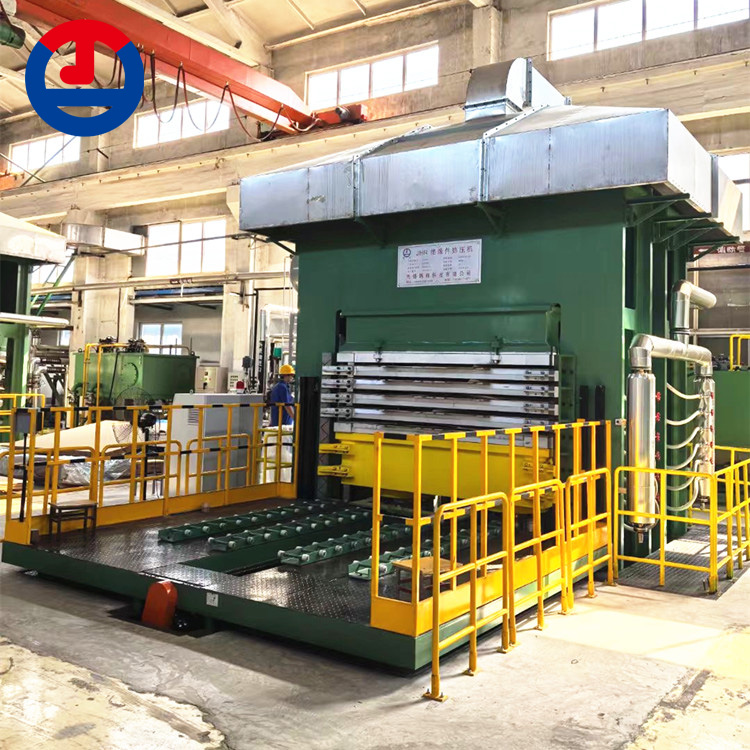

Transformer Insulation Paperboard Pressing Machine

Basic Info

Model No.: JHR

Brand: JinHe

Place Of Origin: China

Status: New

Warranty Period: 1 Year

Video Factory Inspection: Provided

Mechanical Test Report: Provided

Marketing Type: Ordinary Product

Core Component Warranty Period: 1 Year

Core Components: Plc, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump

Core Selling Point: Easy To Operate, Famous Brand Plc, Remote Control, Accurate Temperature Control, Competitive Price, Long Service Life, Remote Monitoring, High Productivity, Low Noise Level, Patented Product, Multilayer, Flexible Manufacturing, Famous Brand Motor, Sustainable, Multifunctional, Bi-Color, High Safety Level, Low Maintenance Cost, High-Accuracy, High Rigidity, Automatic, Multi Color, Energy Saving

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Applicable Industry: Building Material Shops, Manufacturing Plant, Retail, Construction Works

Control: PLC+GOT

Plate Size: Customized

Pressure: 20000-110000 Ton

Layers Distance: 200 mm

Layers: 4-18 layers

Voltage: Custiomized

Color: Custiomized

After-sales Service Provided: Online video command installation, engineers on-site installation

Product Name: Transformer Insulation Paperboard Pressing Machine

Application: AC/DC transformers, reactors, transformers, ultra-high/extra high voltage transformers, high voltage switches

Additional Info

Packaging: Packing frame and plastic film, then load into containers

Productivity: 50 sets per year

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 50 sets per year

Certificate: ISO 9001; ISO 14001

HS Code: 84778000

Port: Shanghai

Product Description

Transformer Insulation Paperboard Pressing Machine

Insulation of High Voltage/Ultra High Voltage Transmission and Transformation Equipment.

1. Featuring high purity, high mechanical strength, and good dimensional stability, it is suitable for:

-Fixing, separating, and supporting coils of AC/DC transformers, reactors, and transformers;

-Partition material in the oil tank of ultra-high/extra high voltage transformers (temperature ≤ 90 ℃);

-Insulation of special parts of high-voltage switches and other equipment.

-International leading technology, dedicated to the special insulation requirements of 1100kV ultra-high voltage equipment, such as integral outgoing line devices.

2. Application of medium and low voltage electrical appliances and capacitors

-Excellent flexibility and flatness, used for:

Interlayer insulation of power capacitors;

Insulation protection for small and medium-sized motors, electrical switches, and wires and cables.

3. Processing of molded parts and special scenarios

-Machining molded parts (such as braces, pads, pressure plates)

By cutting or molding processes, directly embedded into transformers and other equipment to provide structural stability;

-Red insulation cardboard

Used for non electric scenarios such as welding machine masks and shoe gaskets, it has both insulation and mechanical protection functions.

Core characteristics support applications: The voltage resistance strength (compatible with air/oil media), thermal stability (long-term operating temperature ≤ 90 ℃), and dimensional accuracy of insulating cardboard are key to its widespread use in power systems.

Technical Data

Product Categories : Insulation Cardboard Hot Press Machine
