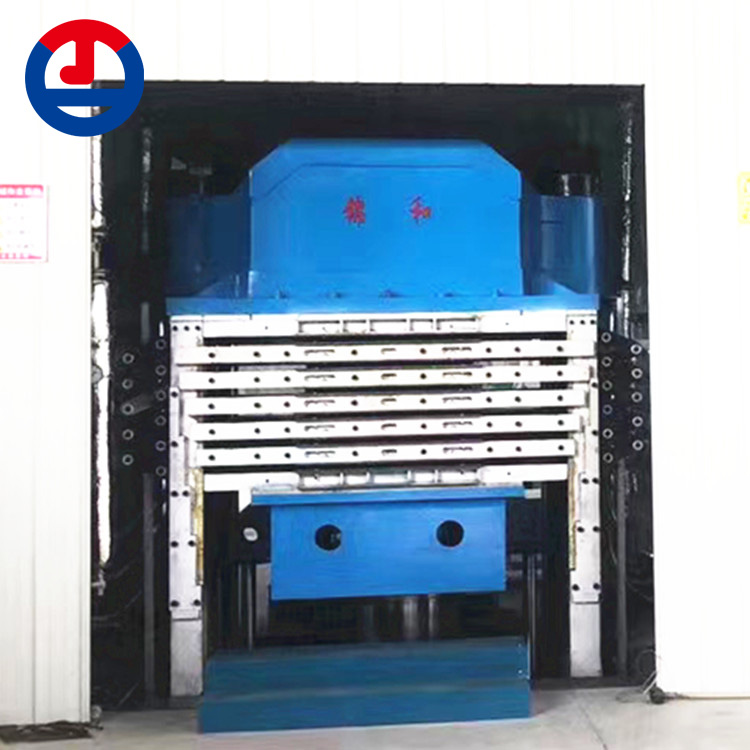

EPDM Rubber Foam Machines

Basic Info

Model No.: JHF

Brand: JinHe

Place Of Origin: China

Status: New

Processing Type: Foaming Machine

Product Category: Fast Food Box, Foam Net, Plastic Sheet, Pvc Profile

Certification: Ce, Ul

Warranty Period: 1 Year

Core Selling Point: Automatic, Competitive Price, High-Accuracy, High Safety Level, Energy Saving, Sustainable, Long Service Life, High Productivity, Easy To Operate, Flexible Manufacturing

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Applicable Industry: Building Material Shops, Manufacturing Plant, Retail, Construction Works

Marketing Type: Ordinary Product

Mechanical Test Report: Provided

Video Factory Inspection: Provided

Core Component Warranty Period: 1 Year

Core Components: Bearing, Motor, Pump, Gear, Plc, Other, Pressure Vessel, Engine, Gearbox

Power: 22 KW

Overall Size: 2150x1750x4900 mm

Hot Plate Size: 1300x1600mm

Layers Distance: 170 mm

Layers: 6 layers

Columns Distance: 1600 mm

Control Mode: PLC / automatic / manual

Application: EVA, PE, POE, Rubber, Plastic molding and foaming

Product Name: EPDM Rubber Foam Machines

Pressure: 1100 -5000ton

Additional Info

Packaging: Packing frame and plastic film, then load into containers

Productivity: 100 sets per year

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 100 sets per year

Certificate: ISO 9001; ISO 14001

HS Code: 84778000

Port: Shanghai

Product Description

EPDM Rubber Foam Machines

Epdm Foaming Machine havs various specifications for different sizes materials, 1*2 meters, 1.2*2.4 meters, 1.2*3 meters, 1.5*3 meters, 1.5*4 meters, etc., and there is a wide range of subsequent additions. With our many years of experience in this industry, we can give the most reasonable suggestions, the most reasonable machines and the most suitable products, eliminate invisible waste from the source, and make your project go to market faster.

1. ‌Material composition and characteristics‌

EPDM foam material is a terpolymer made of ethylene, propylene and a small amount of non-conjugated diene copolymers, which is made by physical foaming or cross-linking foaming process. Its main chain is a chemically stable saturated hydrocarbon, and the side chain contains unsaturated double bonds, so it has excellent ozone resistance, heat resistance, weather resistance and other properties.

2. ‌Main properties‌

‌ Thermal insulation‌: closed-cell foam material contains a large amount of air and has a low thermal conductivity, so it is suitable for use as a thermal insulation material.

‌ Low water absorption‌: The closed-cell structure combined with the hydrophobicity of rubber can effectively prevent water vapor penetration and is an ideal sealing material.

‌ Buffering high elasticity‌: EPDM foam material maintains the high resilience of rubber and is suitable for use in the fields of buffering and shockproofing.

‌ Weather resistance‌: It can be used in the range of -40℃ to +120℃, is resistant to UV rays and aging, and is suitable for outdoor and harsh environments.

‌ Chemical resistance‌: It can resist the erosion of chemicals such as acids, alkalis, and solvents, and is suitable for the chemical and electronics industries.

EPDM Foaming Machine also can be used as EVA Foaming Machine and Rubber Vulcanizing Machine.

Technical Data:
