EVA High Rate Foaming Molding Machine

Basic Info

Model No.: JHF2

Brand: QuanJinHe

Place Of Origin: China

Status: New

Processing Type: Foaming Machine

Product Category: Foam Net, Pe Film, Plastic Sheet, Pvc Profile

Certification: Ce, Ul

Warranty Period: 1 Year

Core Selling Point: Automatic, Multifunctional, Competitive Price, High-Accuracy, High Safety Level, Energy Saving, Sustainable, Long Service Life, High Productivity, Easy To Operate, Flexible Manufacturing

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Applicable Industry: Building Material Shops, Manufacturing Plant, Retail, Construction Works

Marketing Type: Ordinary Product

Mechanical Test Report: Provided

Video Factory Inspection: Provided

Core Component Warranty Period: 1 Year

Core Components: Bearing, Motor, Pump, Gear, Plc, Other, Pressure Vessel, Engine, Gearbox

Power: 5.5 kw

Plate Size: 1000x2000, Customized

Mold Size: 1150x2150 mm

Layers Distance: 150 mm

Layers: 6-10 layers

Equipment Composition: main machine*1,hydraulic station*1 and electric control box*1

Heating: Steam

Cooling: Water

Application: EVA rubber plastic product, sheets, shoes, tiles, mats

Product Name: EVA High Rate Foaming Molding Machine

Additional Info

Packaging: Packing frame and plastic film, then load into containers

Productivity: 100 sets per year

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 100 sets per year

Certificate: ISO 9001; ISO 14001

HS Code: 84778000

Port: Shanghai

Product Description

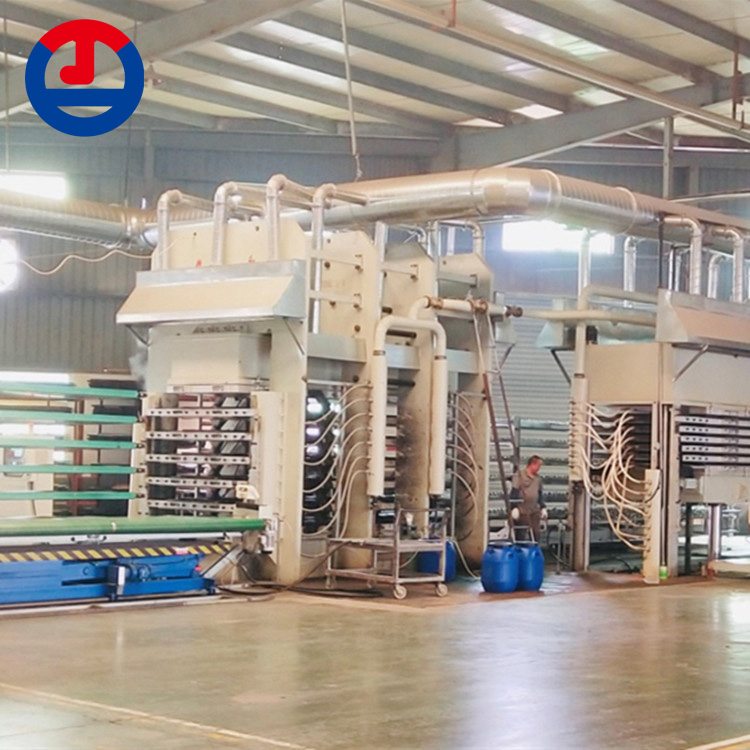

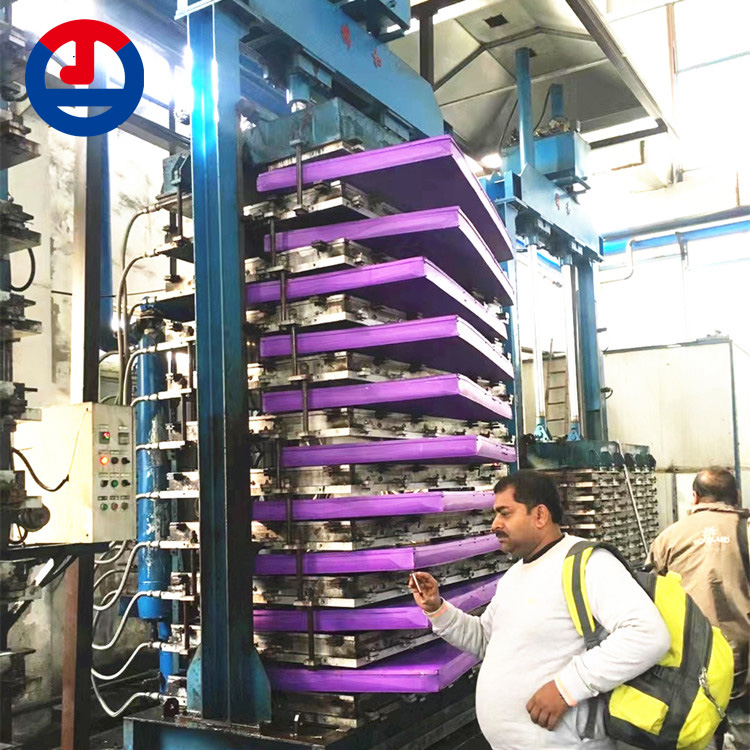

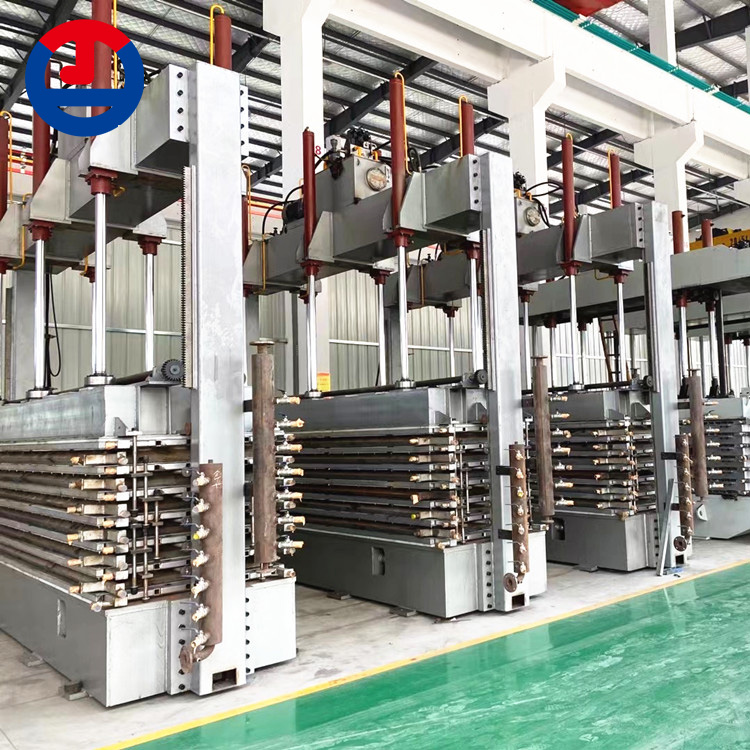

EVA High Rate Foaming Molding Machine

Eva Secondary Foaming Machine is used for high rate foaming of EVA, PE, EPDM, SBR rubber and plastic materials.(Expansion rate:25-45 times). It's a kind of Rubber And Plastic Foaming Machine. Normally this machine works after EVA Foaming Machine.

EVA board is made of EVA and polyethylene, and can be processed into different thicknesses. It has the characteristics of easy processing, strong plasticity, good appearance, good compatibility, high safety, and high environmental friendliness. It is a new type of environmentally friendly plastic foam material widely used in various industries.

EVA board is a sheet material, with EVA and low-density polyethylene as the main raw materials in the product. Adding foaming agents and other additives, it is molded and foamed into thick sheets in a high-temperature foaming furnace through mixing, and then processed through a series of processes such as shaping, slicing, and post-treatment to form EVA board or coil. EVA board is currently the most widely used soft foam material in any industry both domestically and internationally. EVA board can be sliced into any thickness. With the development of domestic and international economic production, the requirements for materials are becoming increasingly refined. Through research and development of product technology, the thinnest can be produced to 0.1mm thickness, and the thickest can be produced to 105mm, which can meet the technical indicators of various industries.

Technical Data:
