EVA Twice Foaming Machine

Basic Info

Model No.: JHF2

Brand: QuanJinHe

Place Of Origin: China

Status: New

Processing Type: Foaming Machine

Product Category: Foam Net, Pe Film, Plastic Sheet, Pvc Profile

Certification: Ce

Warranty Period: 1 Year

Core Selling Point: Automatic, Multifunctional, Competitive Price, High-Accuracy, High Safety Level, Energy Saving, Sustainable, Long Service Life, High Productivity, Easy To Operate, Flexible Manufacturing

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Applicable Industry: Building Material Shops, Manufacturing Plant, Retail, Construction Works

Marketing Type: Ordinary Product

Mechanical Test Report: Provided

Video Factory Inspection: Provided

Core Component Warranty Period: 1 Year

Core Components: Bearing, Motor, Pump, Gear, Plc, Other, Pressure Vessel, Engine, Gearbox

Power: 5.5 kw

Plate Size: 1000x2000, Customized

Mold Size: 1150x2150 mm

Layers Distance: 150 mm

Layers: 6-10 layers

Equipment Composition: main machine*1,hydraulic station*1 and electric control box*1

Heating: Steam

Cooling: Water

Application: EVA rubber plastic product, sheets, shoes, tiles, mats

Product Name: EVA Twice Foaming Machine

Additional Info

Packaging: Packing frame and plastic film, then load into containers

Productivity: 100 sets per year

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 100 sets per year

Certificate: ISO 9001; ISO 14001

HS Code: 84778000

Port: Shanghai

Product Description

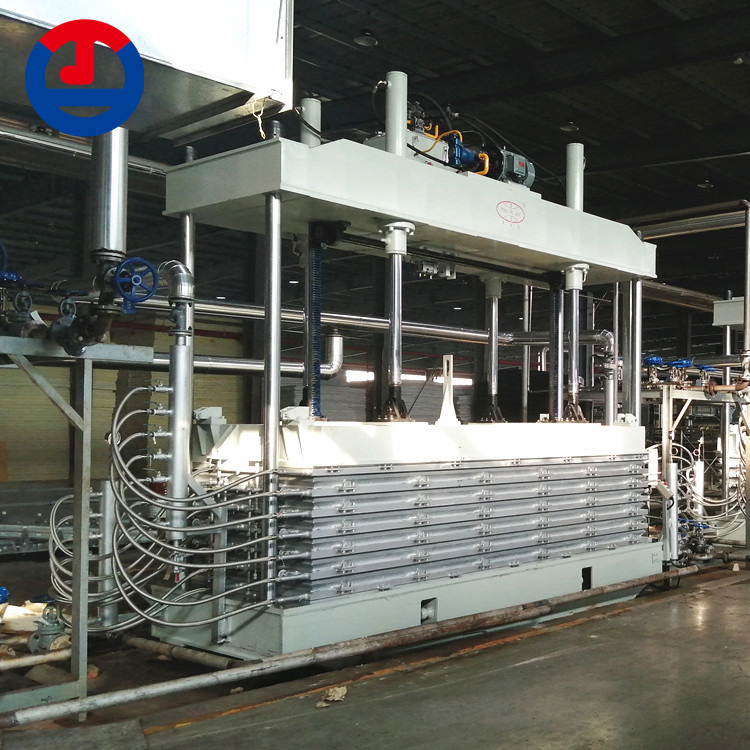

EVA Twice Foaming Machine

Eva Secondary Foaming Machine is used for high rate foaming of EVA, PE, EPDM, SBR rubber and plastic materials.(Expansion rate:25-45 times). It's a kind of Rubber And Plastic Foaming Machine. Normally this machine works after EVA Foaming Machine. If your product is higher value, you also can choose our Eva Supercritical Foaming Machine.

One of the main application: EVA board, also known as ethylene vinyl acetate copolymer board, has a series of unique basic characteristics that make it widely used in multiple fields. The following are the main basic characteristics of EVA board:

Excellent elasticity: EVA board has good elasticity and can quickly recover to its original state after being subjected to external forces, making it very useful in situations where cushioning, shock absorption, or protective materials are needed.

Excellent cushioning performance: Due to its high elasticity, EVA board can effectively absorb and disperse impact forces, protecting packaged or supported items from damage. This feature is particularly important in the packaging industry, such as the packaging of electronic products, precision instruments, etc.

Good water resistance: EVA board is not easy to absorb water, has good moisture resistance, and can maintain stable performance in humid environments.

Anti mold and antibacterial: The material of EVA board is usually not easy to breed mold and bacteria, which helps to maintain the cleanliness and hygiene of the product.

Environmentally friendly and biodegradable: EVA board is an environmentally friendly material that can be completely degraded and will not cause long-term pollution to the environment. This characteristic is in line with the current global pursuit of sustainable development.

Easy to process: EVA board is easy to cut, heat press, die cut and other processing methods, which can meet the needs of different shapes and sizes and facilitate the production of products in various shapes.

Lightweight and High Strength: Although EVA board has good elasticity and cushioning properties, it is relatively lightweight and has high strength, making it easy to handle and install.

Weather resistance: EVA board has a certain resistance to environmental factors such as ultraviolet radiation and temperature changes, and can maintain stable performance over a wide temperature range.

Insulation: EVA board has certain insulation properties, which can isolate the transmission of current and electromagnetic waves, and is suitable for occasions that require insulation protection.

Sound insulation and heat insulation: Due to its unique material and structure, EVA board also has certain sound insulation and heat insulation effects, which can improve indoor environment.

Technical Data
