EVA Supercritical Foaming Molding Machine

Basic Info

Model No.: JHFC

Brand: QuanJinHe

Place Of Origin: China

Status: New

Processing Type: Foaming Machine

Product Category: Laminated Tube, Bubble Film, Fast Food Box, Foam Net, Pe Film, Pet Strap, Plastic Bag, Plastic Bottle, Plastic Cup, Plastic Pipe, Plastic Rope, Plastic Sheet, Pp Woven Bag, Pvc Profile

Certification: Ce, Ul

Warranty Period: 1 Year

Core Selling Point: Automatic, Multifunctional, Competitive Price, High-Accuracy, High Safety Level, Energy Saving, Sustainable, Long Service Life, High Productivity, Easy To Operate, Flexible Manufacturing

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Applicable Industry: Building Material Shops, Manufacturing Plant, Retail, Construction Works

Marketing Type: Ordinary Product

Mechanical Test Report: Provided

Video Factory Inspection: Provided

Core Component Warranty Period: 1 Year

Core Components: Bearing, Motor, Pump, Gear, Plc, Other, Pressure Vessel, Engine, Gearbox

Voltage: Customized

Pressure: 1800 ton

Layers: 6-12 layers

Layer Distance: 180 mm

Control Mode: PLC+GOT

Application: Aerospace, rail transit, automobiles, surface vessels, wind turbineblades, buffer packaging, cold chain logistics, sports protection,biomedicine, etc.

Foaming Agent: CO2; N2

Frequency: Customized

Working Table: 1200x1700 mm, Customized

Product Name: EVA Supercritical Foaming Molding Machine

Additional Info

Packaging: Packing frame and plastic film, then load into containers

Productivity: 200 sets per year

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 200 sets per year

Certificate: ISO 9001; ISO 14001

HS Code: 84778000

Port: Shanghai

Product Description

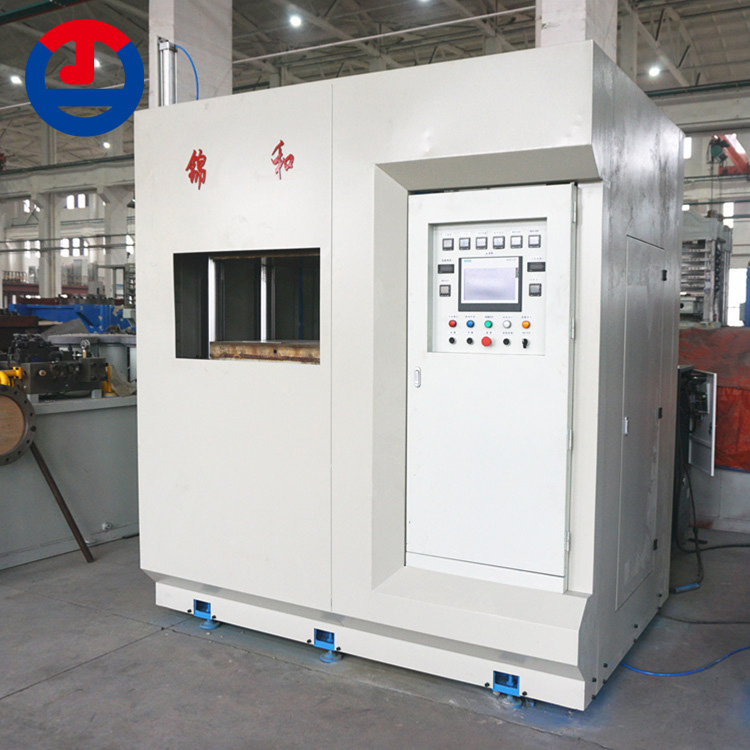

EVA Supercritical Foaming Molding Machine

Usage: This kind of Rubber And Plastic Foaming Machine is a specialized foaming machine made according to the supercritical process of polymer materials. We also have noraml EVA Foaming Machine and Secondary EVA Foaming Machine for your choice.

Supercritical foaming is a physical foaming molding technology, as well as a microporous foaming molding technology, which uses supercritical fluids such as carbon dioxide or nitrogen in a supercritical state to replace organic foaming agents and foam at a certain pressure and temperature.

This process has no residual formamide, is odorless and non-toxic, provides long-term protection for both consumers and producers, does not use crosslinking agents, can be melted and recycled, and is environmentally friendly.

Compared to traditional chemical foaming, which is difficult to achieve lightweight and low-density performance for some materials, the development of supercritical foaming technology can enable more materials to achieve lightweight and low-density performance, while also having the advantages of environmental protection and cleanliness, which is in line with the current carbon neutrality development strategy.

Technical Data:
