SBR Supercritical Foaming Molding Machine

Basic Info

Model No.: JHFC

Brand: QuanJinHe

Place Of Origin: China

Status: New

Processing Type: Foaming Machine

Product Category: Laminated Tube, Bubble Film, Fast Food Box, Foam Net, Pe Film, Pet Strap, Plastic Bag, Plastic Bottle, Plastic Cup, Plastic Pipe, Plastic Rope, Plastic Sheet, Pp Woven Bag, Pvc Profile

Certification: Ce, Ul

Warranty Period: 1 Year

Core Selling Point: Automatic, Multifunctional, Competitive Price, High-Accuracy, High Safety Level, Energy Saving, Sustainable, Long Service Life, High Productivity, Easy To Operate, Flexible Manufacturing

Out-of-warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service

Applicable Industry: Building Material Shops, Manufacturing Plant, Retail, Construction Works

Marketing Type: Ordinary Product

Mechanical Test Report: Provided

Video Factory Inspection: Provided

Core Component Warranty Period: 1 Year

Core Components: Bearing, Motor, Pump, Gear, Plc, Other, Pressure Vessel, Engine, Gearbox

Voltage: Customized

Pressure: 1800 ton

Layers: 6-12 layers

Layer Distance: 180 mm

Control Mode: PLC+GOT

Application: Aerospace, rail transit, automobiles, surface vessels, wind turbineblades, buffer packaging, cold chain logistics, sports protection,biomedicine, etc.

Foaming Agent: CO2; N2

Frequency: Customized

Working Table: 1200x1700 mm, Customized

Product Name: SBR Supercritical Foaming Molding Machine

Additional Info

Packaging: Packing frame and plastic film, then load into containers

Productivity: 200 sets per year

Transportation: Ocean,Land

Place of Origin: China

Supply Ability: 200 sets per year

Certificate: ISO 9001; ISO 14001

HS Code: 84778000

Port: Shanghai

Product Description

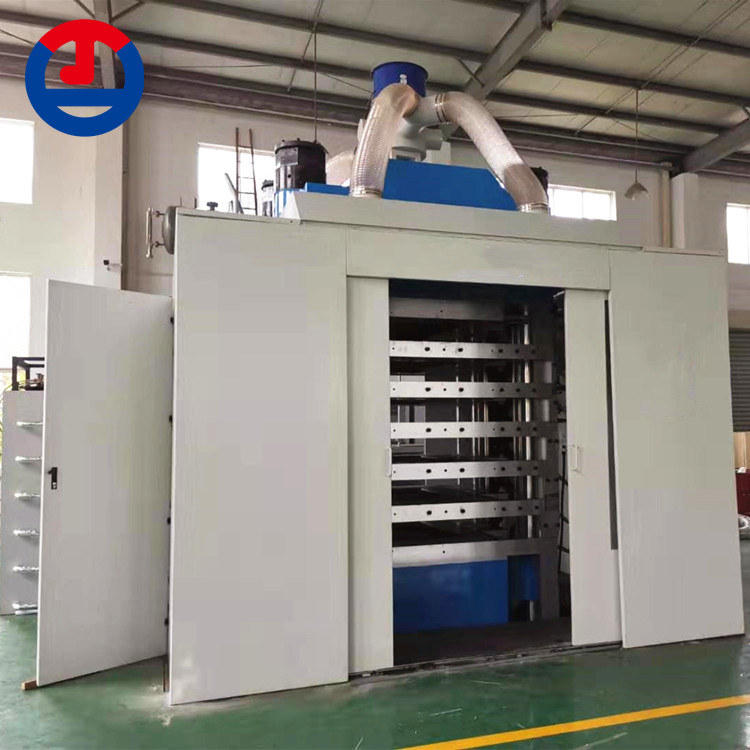

SBR Supercritical Foaming Molding Machine

Usage: This kind of Rubber And Plastic Foaming Machine is a specialized foaming machine made according to the supercritical process of polymer materials. We also have noraml EVA Foaming Machine and Secondary EVA Foaming Machine for your choice.

In the foaming process of polymer materials, it can be divided into two categories based on the different production mechanisms of bubbles: chemical foaming and physical foaming.

Supercritical foaming is a type of physical foaming, also known as supercritical fluid microcellular foaming. The physical properties of supercritical fluids are between those of liquids and gases, and under certain temperature and pressure, they possess both gas and liquid properties. They can diffuse easily like gases and infiltrate easily like liquids. The basic principle of supercritical foaming is to utilize the dependence of gas solubility in polymers on pressure and temperature, so that the polymer mixture system after supersaturation with supercritical fluid enters a thermodynamically unstable state during the cooling process, inducing the formation of gas nuclei and obtaining microporous structures.

Chemical foaming is a traditional and mature foaming process that involves heating a chemical foaming agent added to a polymer material to decompose and release gas, resulting in foaming. The entire foaming process is similar to the fermentation of pastry, and is still widely used in the production of ordinary midsoles.
